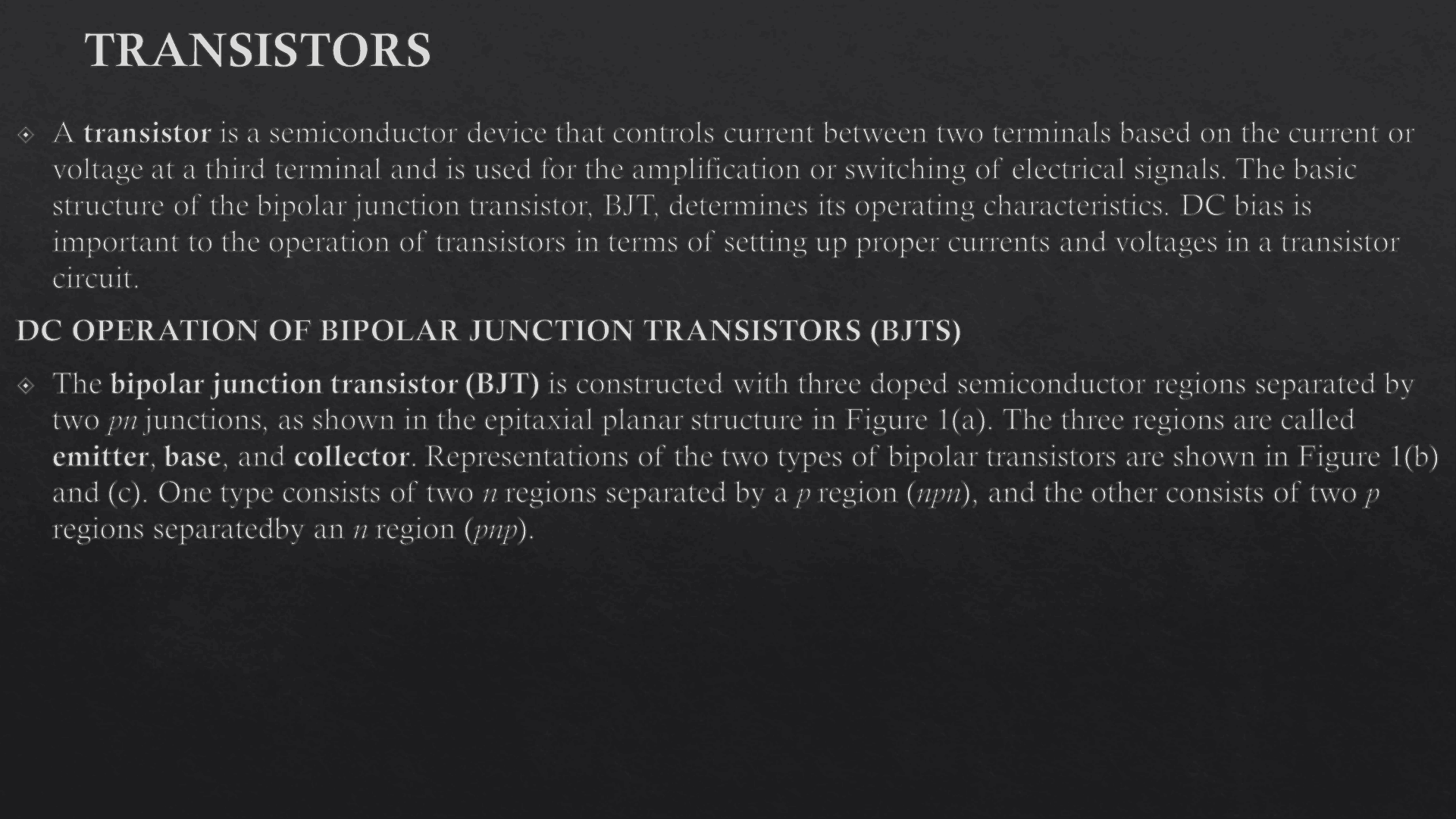

TRANSISTORS ® A transistor is a semiconductor device that controls current between two terminals based on the current or voltage at a third terminal and is used for the amplification or switching of electrical signals. The basic structure of the bipolar junction transistor, BJT, determines its operating characteristics. DC bias ts important to the operation of transistors in terms of setting up proper currents and voltages in a transistor ores DC OPERATION OF BIPOLAR JUNCTION TRANSISTORS (BJTS) ® The bipolar junction transistor (BJT) is constructed with three doped semiconductor regions separated by two pi junctions, as shown in the epitaxial planar structure in Figure I(a). The three regions are called emitter, base, and collector. Representations of the two types of bipolar transistors are shown in Figure |(b) and (c). One type consists of two 7 regions separated by a p region (mp), and the other consists of two p regions separatedby an 7 region (pip).
