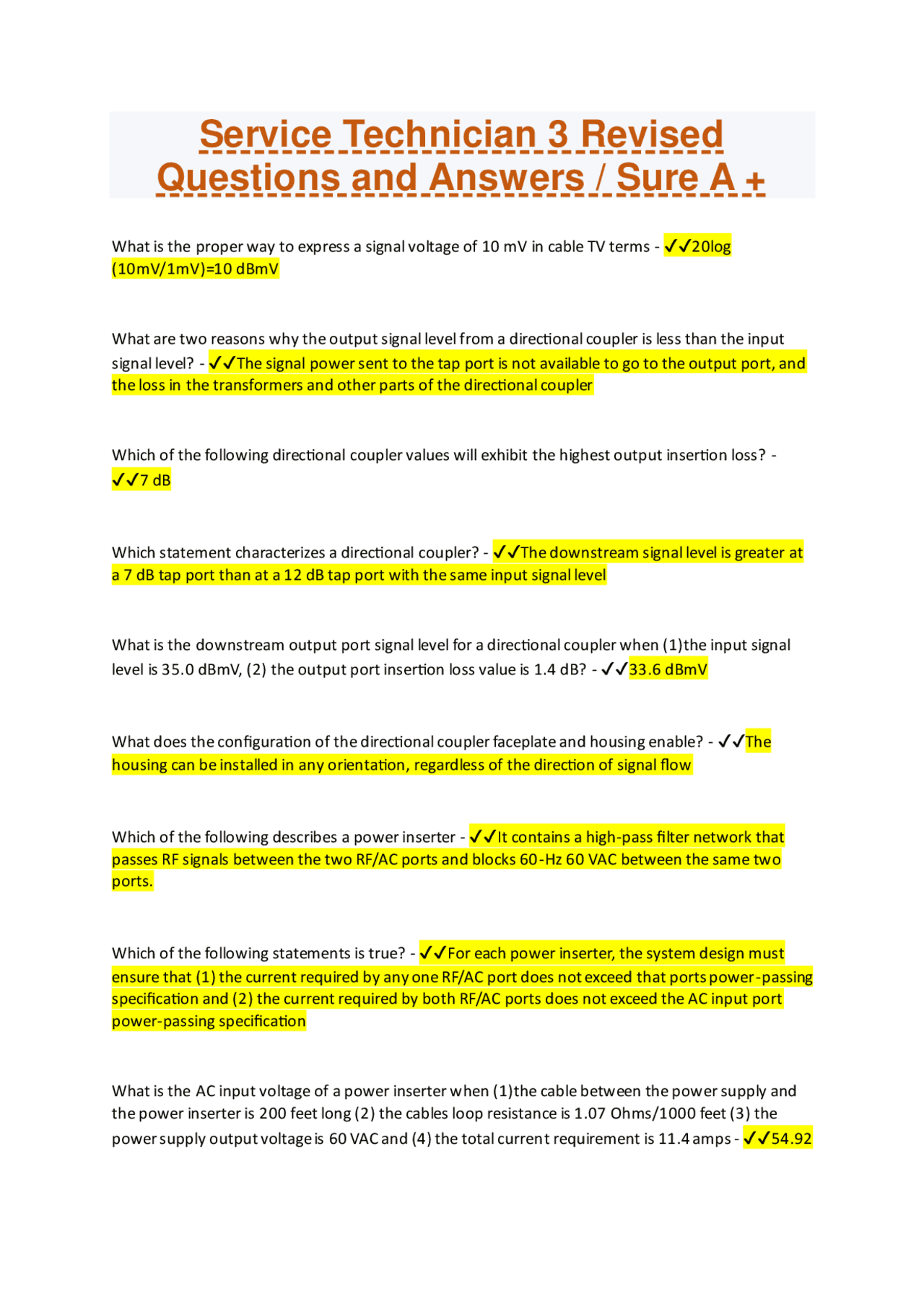

Service Technician 3 Revised
Questions and Answers / Sure A +
What is the proper way to express a signal voltage of 10 mV in cable TV terms - ✔✔20log
(10mV/1mV)=10 dBmV
What are two reasons why the output signal level from a directional coupler is less than the input
signal level? - ✔✔The signal power sent to the tap port is not available to go to the output port, and
the loss in the transformers and other parts of the directional coupler
Which of the following directional coupler values will exhibit the highest output insertion loss? -
✔✔7 dB
Which statement characterizes a directional coupler? - ✔✔The downstream signal level is greater at
a 7 dB tap port than at a 12 dB tap port with the same input signal level
What is the downstream output port signal level for a directional coupler when (1)the input signal
level is 35.0 dBmV, (2) the output port insertion loss value is 1.4 dB? - ✔✔33.6 dBmV
What does the configuration of the directional coupler faceplate and housing enable? - ✔✔The
housing can be installed in any orientation, regardless of the direction of signal flow
Which of the following describes a power inserter - ✔✔It contains a high-pass filter network that
passes RF signals between the two RF/AC ports and blocks 60-Hz 60 VAC between the same two
ports.
Which of the following statements is true? - ✔✔For each power inserter, the system design must
ensure that (1) the current required by any one RF/AC port does not exceed that ports power-passing
specification and (2) the current required by both RF/AC ports does not exceed the AC input port
power-passing specification
What is the AC input voltage of a power inserter when (1)the cable between the power supply and
the power inserter is 200 feet long (2) the cables loop resistance is 1.07 Ohms/1000 feet (3) the
power supply output voltage is 60 VAC and (4) the total current requirement is 11.4 amps - ✔✔54.92
pf3
pf4
pf5
