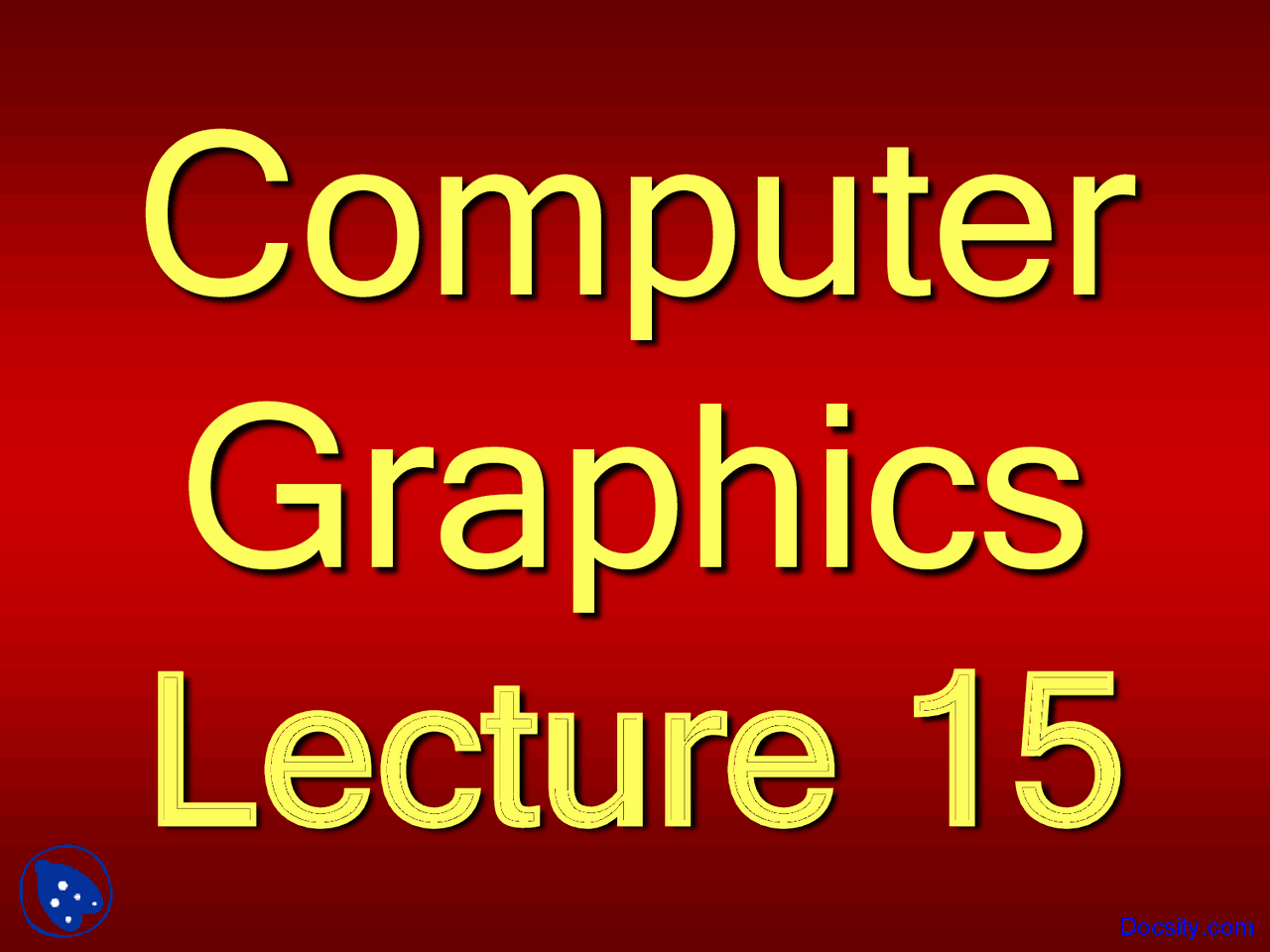

Computer
Graphics
Lecture 15
CLIPPING II
Sutherland-Hodgeman
clipping algorithm
clips any polygon against a
convex clip polygon.
Weiler-Atherton
clipping algorithm
Weiler-Atherton clipping
algorithm clips any polygon
against any clip polygon. The
polygons may even have holes.
Polygon clipping - open polygons.
Polygon clipping - open polygons.

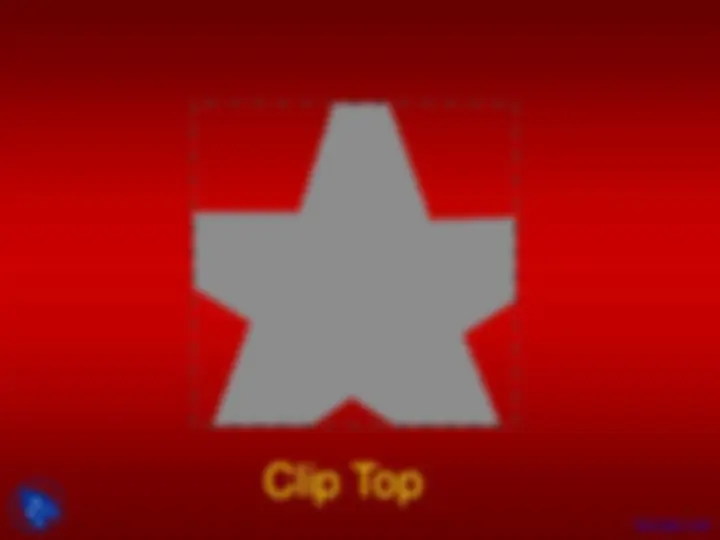

Four clip edges, each
defining one boundary of the
clip rectangle, successively
clip a polygon against a clip
rectangle.
Steps of Algorithm
Polygons can be clipped against each edge of the window one at a time. Vertices which are kept after clipping against one window edge are saved for clipping against the remaining edges.
