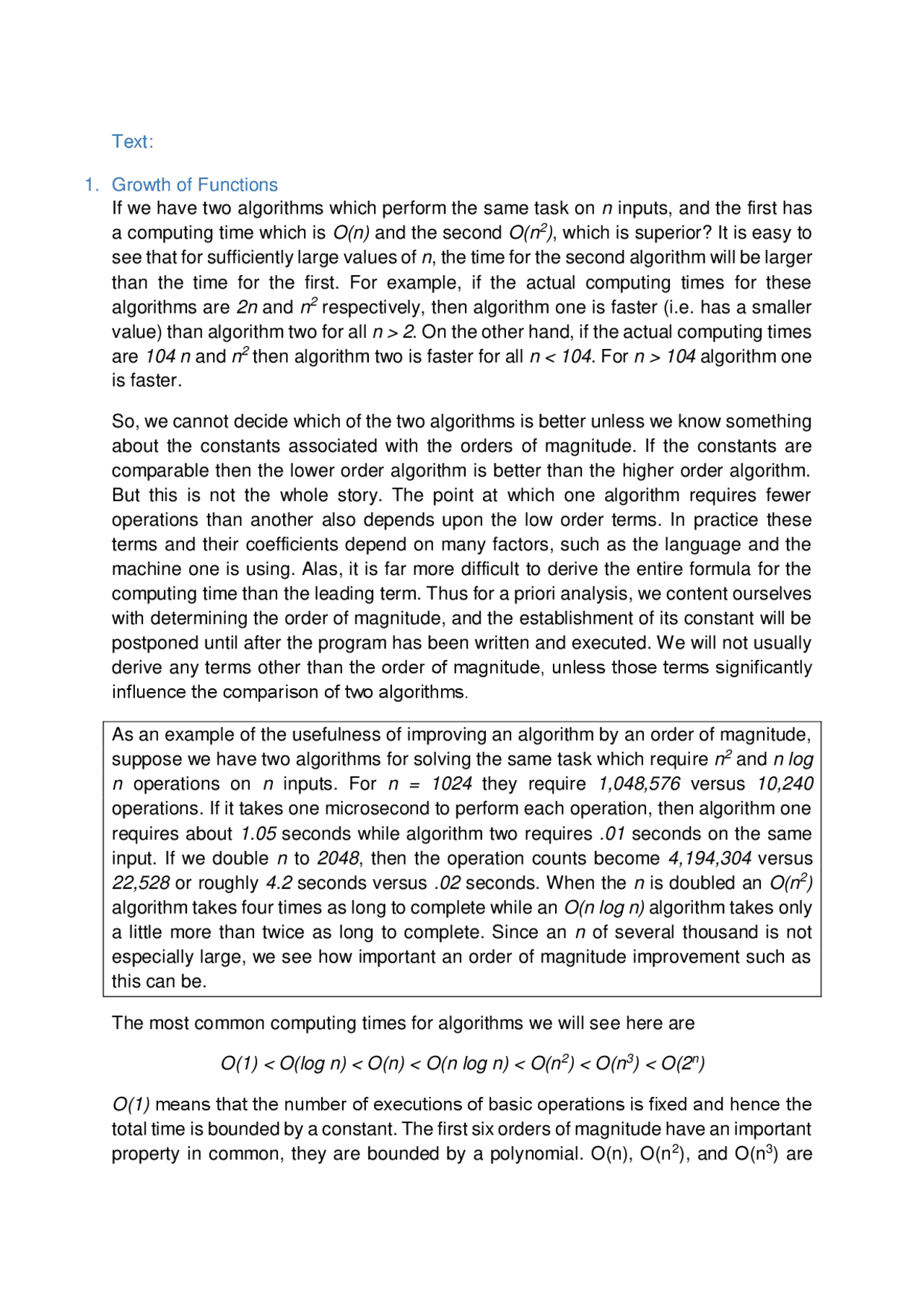

1. Growth of Functions

If we have two algorithms which perform the same task on n inputs, and the first has

a computing time which is O(n) and the second O(n2), which is superior? It is easy to

see that for sufficiently large values of n, the time for the second algorithm will be larger

than the time for the first. For example, if the actual computing times for these

algorithms are 2n and n2 respectively, then algorithm one is faster (i.e. has a smaller

value) than algorithm two for all n > 2. On the other hand, if the actual computing times

are 104 n and n2 then algorithm two is faster for all n < 104. For n > 104 algorithm one

is faster.

So, we cannot decide which of the two algorithms is better unless we know something

about the constants associated with the orders of magnitude. If the constants are

comparable then the lower order algorithm is better than the higher order algorithm.

But this is not the whole story. The point at which one algorithm requires fewer

operations than another also depends upon the low order terms. In practice these

terms and their coefficients depend on many factors, such as the language and the

machine one is using. Alas, it is far more difficult to derive the entire formula for the

computing time than the leading term. Thus for a priori analysis, we content ourselves

with determining the order of magnitude, and the establishment of its constant will be

postponed until after the program has been written and executed. We will not usually

derive any terms other than the order of magnitude, unless those terms signiﬁcantly

inﬂuence the comparison of two algorithms.

As an example of the usefulness of improving an algorithm by an order of magnitude,

suppose we have two algorithms for solving the same task which require n2 and n log

n operations on n inputs. For n = 1024 they require 1,048,576 versus 10,240

operations. If it takes one microsecond to perform each operation, then algorithm one

requires about 1.05 seconds while algorithm two requires .01 seconds on the same

input. If we double n to 2048, then the operation counts become 4,194,304 versus

22,528 or roughly 4.2 seconds versus .02 seconds. When the n is doubled an O(n2)

algorithm takes four times as long to complete while an O(n log n) algorithm takes only

a little more than twice as long to complete. Since an n of several thousand is not

especially large, we see how important an order of magnitude improvement such as

this can be.

The most common computing times for algorithms we will see here are

O(1) < O(log n) < O(n) < O(n log n) < O(n2) < O(n3) < O(2n)

O(1) means that the number of executions of basic operations is ﬁxed and hence the

total time is bounded by a constant. The first six orders of magnitude have an important

property in common, they are bounded by a polynomial. O(n), O(n2), and O(n3) are

Partial preview of the text

Download Growth and comparision of Functions and more Cheat Sheet Design and Analysis of Algorithms in PDF only on Docsity!

Text:

Growth of Functions If we have two algorithms which perform the same task on n inputs, and the first has a computing time which is O(n) and the second O(n^2 ) , which is superior? It is easy to see that for sufficiently large values of n , the time for the second algorithm will be larger than the time for the first. For example, if the actual computing times for these algorithms are 2n and n^2 respectively, then algorithm one is faster (i.e. has a smaller value) than algorithm two for all n > 2. On the other hand, if the actual computing times are 104 n and n^2 then algorithm two is faster for all n < 104. For n > 104 algorithm one is faster. So, we cannot decide which of the two algorithms is better unless we know something about the constants associated with the orders of magnitude. If the constants are comparable then the lower order algorithm is better than the higher order algorithm. But this is not the whole story. The point at which one algorithm requires fewer operations than another also depends upon the low order terms. In practice these terms and their coefficients depend on many factors, such as the language and the machine one is using. Alas, it is far more difficult to derive the entire formula for the computing time than the leading term. Thus for a priori analysis, we content ourselves with determining the order of magnitude, and the establishment of its constant will be postponed until after the program has been written and executed. We will not usually derive any terms other than the order of magnitude, unless those terms significantly influence the comparison of two algorithms. As an example of the usefulness of improving an algorithm by an order of magnitude, suppose we have two algorithms for solving the same task which require n^2 and n log n operations on n inputs. For n = 1024 they require 1,048,576 versus 10, operations. If it takes one microsecond to perform each operation, then algorithm one requires about 1.05 seconds while algorithm two requires .01 seconds on the same input. If we double n to 2048 , then the operation counts become 4,194,304 versus 22,528 or roughly 4.2 seconds versus .02 seconds. When the n is doubled an O(n^2 ) algorithm takes four times as long to complete while an O(n log n) algorithm takes only a little more than twice as long to complete. Since an n of several thousand is not especially large, we see how important an order of magnitude improvement such as this can be. The most common computing times for algorithms we will see here are O(1) < O(log n) < O(n) < O(n log n) < O(n^2 ) < O(n^3 ) < O(2n) O(1) means that the number of executions of basic operations is fixed and hence the total time is bounded by a constant. The first six orders of magnitude have an important property in common, they are bounded by a polynomial. O(n), O(n^2 ), and O(n^3 ) are

themselves polynomials referred to by their degrees: linear, quadratic, and cubic. However, there is no integer m such that nm^ bounds 2 n , or 2 n^ ≠ O(nm) for any integer m. The order of this formula is O(2n^ ) An algorithm whose computing time is bounded below by Ω(2n^ ) is said to require exponential time. As n gets large, there becomes a tremendous difference between exponential and polynomial time algorithms. If one finds an algorithm which reduces the time to solve a problem from exponential to polynomial, that is a great accomplishment. Figure 6.1 and Table 6.1 show how the computing times for six of the typical functions grow with a constant equal to one. Notice how the times O(n) and O(n log n) grow much more slowly than the others. For large data sets, algorithms with a complexity greater than O(n log n) are often impractical. An algorithm which is exponential will be practical only for very small values of n and even if we decrease the leading constant, say by a factor of 2 or 3, we will not improve the amount of data we can handle by very much. Figure 6.1 Rate of growth of common computing time functions

Example 6.2: f(n) = n^2 log n & g(n) = n (log n)^10 Applying log to both functions f(n) = log (n^2 log n) = log n^2 + log log n = 2 log n + log log n g(n) = log (n (log n)^10 ) = log n + log (log n)^10 = log n + 10 log log n since , 2log n > log n (log log n is very small term) => f(n) > g(n) Example 6.3: f(n) = 3 n √n^ & g(n) = 2 √n log n g(n) = 2 log^ 𝑛 √𝑛 = (n√n) log 2^ = n√n^ (a log b^ = b log a) Here, 3 n √n^ > n√n^ (value wise) But, f(n) = g(n) (asymptotically order is same because we didn’t apply log) Example 6.4: f(n) = 2n^ & g(n) = 22n Applying log to both functions f(n)= log 2n^ = n log 2 = n g(n)= log 22n^ = 2n log 2 = 2n since, n < 2 n f(n) < g(n) (after taking log, we cannot say that they are asymptotically equal, even if they are of same order)
