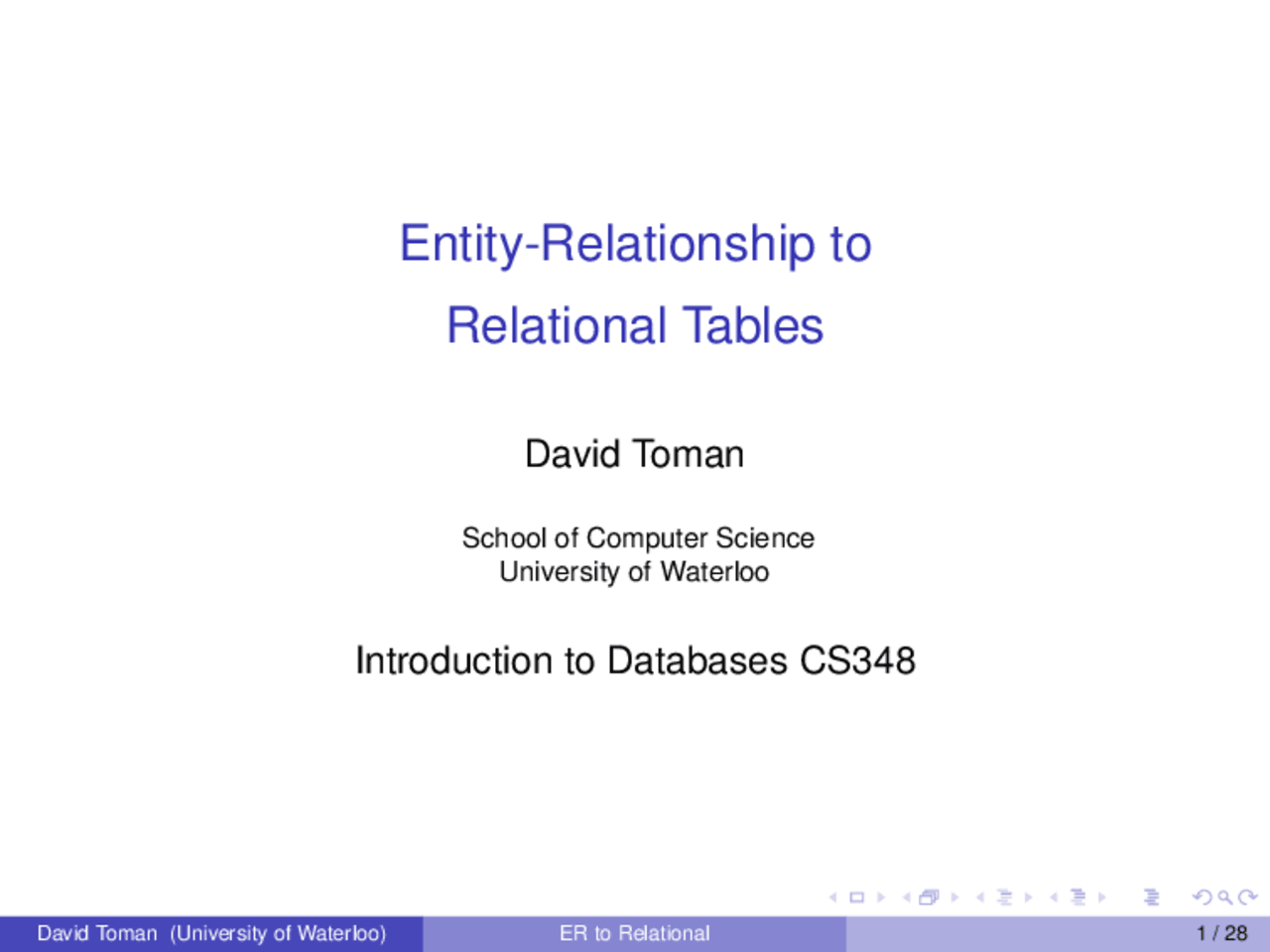

Entity-Relationship to

Relational Tables

David Toman

School of Computer Science University of Waterloo

Introduction to Databases CS

Database Design

How to obtain a good relational database schema

  • (^) Deriving new relational schema from ER-diagrams
  • Normal forms: use of constraints in evaluating existing relational schema

Representing Strong Entity Sets

Entity set E with attributes a 1 ; : : : ; an table E with attributes a 1 ; : : : ; an

Entity of type E $ row in table E Primary key of entity set! primary key of table Example: Student

StudentNum StudentName

Major

Student StudentNum StudentName Major

Representing Weak Entity Sets

Weak entity set E! table E

Columns of table E should include

  • Attributes of the weak entity set
  • (^) Attributes of the identifying relationship set
  • Primary key attributes of entity set for dominating entities

Primary key of weak entity set! primary key of table

Representing Relationship Sets

1 If the relationship set is an identifying relationship set for a weak entity set then no action needed

2 If we can deduce the general cardinality constraint (1,1) for a component entity set E then add following columns to table E

  • Attributes of the relationship set
  • Primary key attributes of remaining component entity sets

3 Otherwise: relationship set R! table R

Representing Relationship Sets (cont.)

Columns of table R should include

  • Attributes of the relationship set
  • (^) Primary key attributes of each component entity set

Primary key of table R determined as follows

  • (^) If we can deduce the general cardinality constraint (0,1) for a component entity set E , then take the primary key attributes for E
  • Otherwise, choose primary key attributes of each component entity

Example Translation: ER diagram

Course

SectionOf

Section

CourseNum

TaughtBy

Professor

EnrolledIn

Student

ProfNum

ProfName StudentNum

StudentName

Mark

CourseName

SectionNum

1

N (^) N

1

(6, 50)

N (3, 5)

(1, 1)

(0, N)

(1, N)

(1, 1) N

Example Translation: result

Course CourseNum CourseName

Student StudentNum StudentName

Section CourseNum SectionNum ProfNum

EnrolledIn CourseNum SectionNum StudentNum Mark

Professor ProfNum ProfName

Representing Aggregation (cont.)

Example:

Student EnrolledIn Course

CourseAccount

Account UserId

StudentNum

CourseNum

ExpirationDate

N N

1

1

Student StudentNum

Course CourseNum

Account UserId EnrolledIn StudentNum CourseNum CourseAccount UserId StudentNum CourseNum ExpirationDate

Representing Specialization

Create table for higher-level entity set, and treat specialized entity subsets like weak entity sets

Example: Student

Graduate

Degrees

SupervisedBy Professor

StudentName

StudentNumber

ProfessorName

1 (1, 1) (0, N) N

Student StudentNumber StudentName

Professor ProfessorName Graduate StudentNumber ProfessorName Degree StudentNumber Degree

Representing Generalization (cont.)

Example:

LicenceNum Vehicle Price

MakeAndModel

Truck Car MaxSpeed

PassengerCount

Tonnage

AxelCount

LicenceNum MakeAndModel Price MaxSpeed PassengerCount

Car

LicenceNum MakeAndModel Price Tonnage AxelCount

Truck

Defining Relations and Integrity Constraints in SQL

  • connected with a table (definition) ) Primary Keys ) Foreign Keys ) CHECK constraints
  • separate ECA rules (triggers)

Example

create table DEPT ( ID integer not NULL, DeptName char(20), MgrNO char(3), PRIMARY KEY (ID) )

Example (cont.)

sql => insert into DEPT values
sql (cont.) => ( 1 ,’Computer Science’, 000100) DB20000I The SQL command completed successfully.

sql => insert into DEPT values
sql (cont.) => ( 1 ,’Computer Science’, 000100) SQL0803N One or more values in the INSERT or UPDATE statement are not valid because they would produce duplicate rows for a table with a unique index. SQLSTATE=
