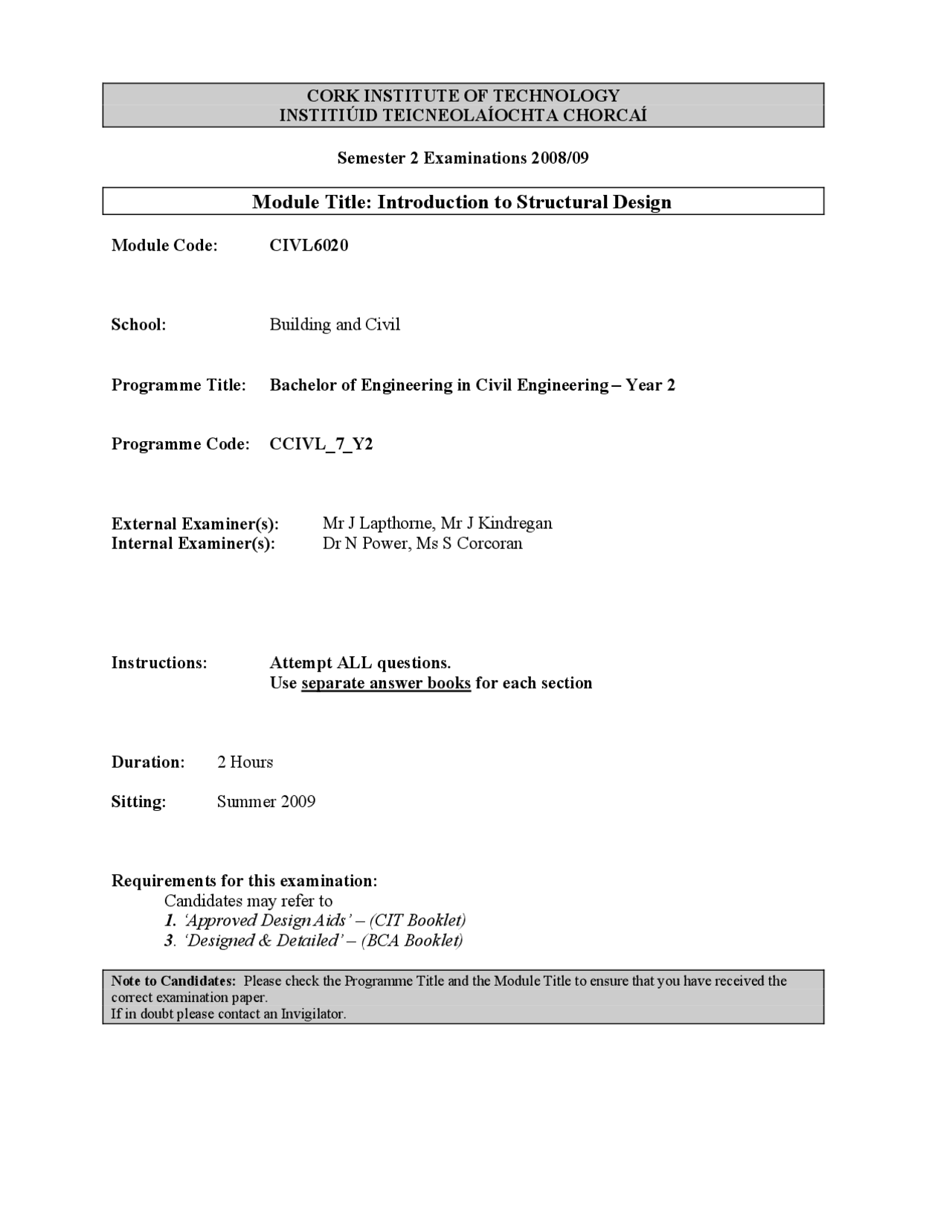

CORK INSTITUTE OF TECHNOLOGY
INSTITIÚID TEICNEOLAÍOCHTA CHORCAÍ
Semester 2 Examinations 2008/
Module Title: Introduction to Structural Design
Module Code: CIVL
School: Building and Civil
Programme Title: Bachelor of Engineering in Civil Engineering – Year 2
Programme Code: CCIVL_7_Y
External Examiner(s): Mr J Lapthorne, Mr J Kindregan Internal Examiner(s): Dr N Power, Ms S Corcoran
Instructions: Attempt ALL questions. Use separate answer books for each section
Duration: 2 Hours
Sitting: Summer 2009
Requirements for this examination: Candidates may refer to
1. ‘Approved Design Aids’ – (CIT Booklet) 3. ‘Designed & Detailed’ – (BCA Booklet)
Note to Candidates: Please check the Programme Title and the Module Title to ensure that you have received the correct examination paper. If in doubt please contact an Invigilator.
Section A –Reinforced Concrete
QA1 Reinforced Concrete Beam (Total 50 Marks)
Figure Q.A1, details the beam and column layout of a reinforced concrete structure. Design and prepare bar bending schedule for the simply supported rectangular beam along grid line 2.
(i) Determine the maximum loading on beam (11 marks) (ii) Design the simply supported beam along grid line 2. (33 marks) (iii) Prepare a bar bending schedule for the beam designed in section A1. (i, ii & iii) Include the completed schedule with you Answer Book. (6 marks)
Design Information for Q.A1:
Durability and Fire: Exposure: Superstructure – mild Fire: 1 hour Loading: Dead Loading: Specific weight of reinforced concrete = 24 kN/m^3 Weight of suspended ceiling & services = 1.75kN/m^2 Brick/Block wall (2.4m height on all beams) = 4.1kN/m^2 of wall area
Imposed Loading: ( uniformly distributed loadings of Table 1, BS6399 –1:1996) Office (general use) = Category B Weight of removable partitions/fittings = 1.75kN/m^2 Materials: Concrete:^ Grade 35 (maximum aggregate size 20mm) Reinforcement: Main – high yield, fy = 460 N/mm^2 Links – mild steel, f (^) y = 250 N/mm^2
Figure QA
A B
(^175) Slab
(^175) Slab
(^175) Slab
250 x 475 Beam All columns 300 x 300
Q. A1 (iii): Please Return with Answer Book
Student Name: Student No.
