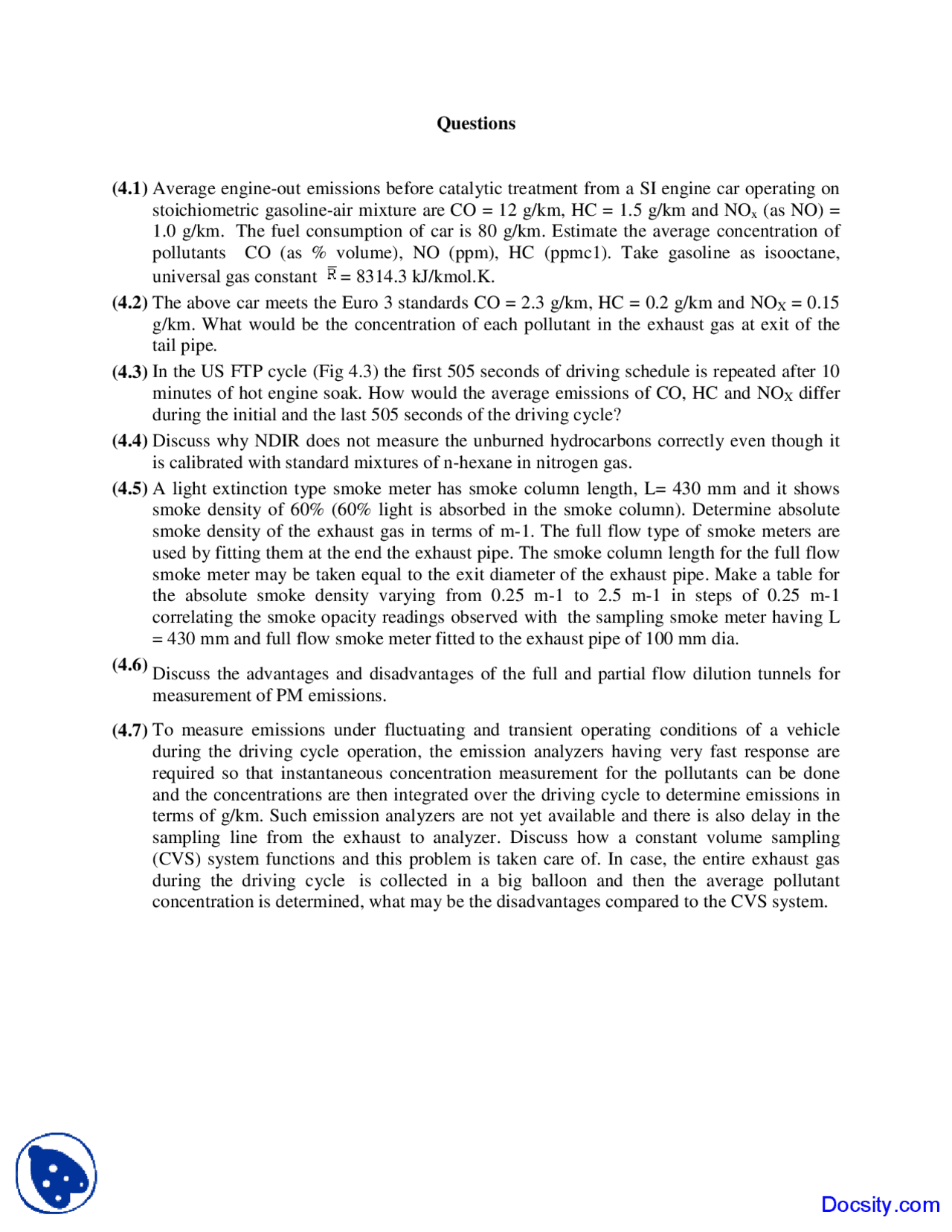

Questions
(4.1)
Average engine-out emissions before catalytic treatment from a SI engine car operating on
stoichiometric gasoline-air mixture are CO = 12 g/km, HC = 1.5 g/km and NOx
(as NO) =
1.0 g/km.
The fuel consumption of car is 80 g/km. Estimate the average concentration of
pollutants
CO (as % volume), NO (ppm), HC (ppmc1). Take gasoline as isooctane,
universal gas constant = 8314.3 kJ/kmol.K.
(4.2)
The above car meets the Euro 3 standards CO = 2.3 g/km, HC = 0.2 g/km and NO
X
= 0.15
g/km. What would be the concentration of each pollutant in the exhaust gas at exit of the
tail pipe.
(4.3)
In the US FTP cycle (Fig 4.3) the first 505 seconds of driving schedule is repeated after 10
minutes of hot engine soak. How would the average emissions of CO, HC and NOX
differ
during the initial and the last 505 seconds of the driving cycle?
(4.4)
Discuss why NDIR does not measure the unburned hydrocarbons correctly even though it
is calibrated with standard mixtures of n-hexane in nitrogen gas.
(4.5)
A light extinction type smoke meter has smoke column length, L= 430 mm and it shows
smoke density of 60% (60% light is absorbed in the smoke column). Determine absolute
smoke density of the exhaust gas in terms of m-
1. The full flow type of smoke meters are
used by fitting them at the end the exhaust pipe. The smoke column length for the full flow
smoke meter may be taken equal to the exit diameter of the exhaust pipe. Make a table for
the absolute smoke density varying from 0.25 m-1 to 2.5 m-1 in steps of 0.25 m-
1
correlating the smoke opacity readings observed with
the sampling smoke meter having L
= 430 mm and full flow smoke meter fitted to the exhaust pipe of 100 mm dia.
(4.6)
Discus
s the advantages and disadvantages of the full and partial flow dilution tunnels for
measurement of PM emissions.
(4.7)
To measure emissions under fluctuating and transient operating conditions of a vehicle
during the driving cycle operation, the
emission analyzers having very fast response are
required so that instantaneous concentration measurement for the pollutants can be done
and the concentrations are then integrated over the driving cycle to determine emissions in
terms of g/km. Such emissio
n analyzers are not yet available and there is also delay in the
sampling line from the exhaust to analyzer. Discuss how a constant volume sampling
(CVS) system functions and this problem is taken care of. In case, the entire exhaust gas
during the driving cycle
is collected in a big balloon and then the average pollutant
concentration is determined, what may be the disadvantages compared to the CVS system.
