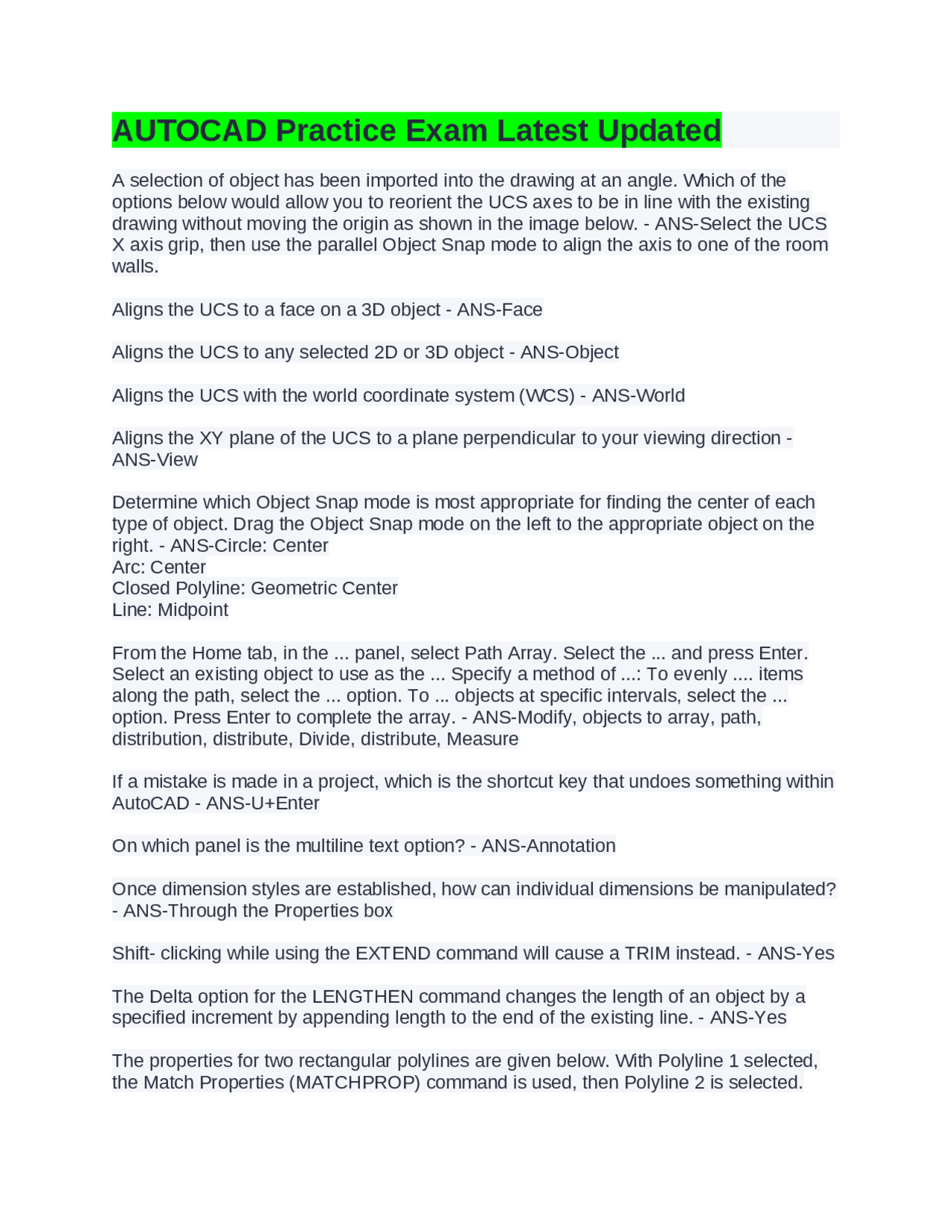

AUTOCAD Practice Exam Latest Updated
A selection of object has been imported into the drawing at an angle. Which of the
options below would allow you to reorient the UCS axes to be in line with the existing
drawing without moving the origin as shown in the image below. - ANS-Select the UCS
X axis grip, then use the parallel Object Snap mode to align the axis to one of the room
walls.
Aligns the UCS to a face on a 3D object - ANS-Face
Aligns the UCS to any selected 2D or 3D object - ANS-Object
Aligns the UCS with the world coordinate system (WCS) - ANS-World
Aligns the XY plane of the UCS to a plane perpendicular to your viewing direction -
ANS-View
Determine which Object Snap mode is most appropriate for finding the center of each
type of object. Drag the Object Snap mode on the left to the appropriate object on the
right. - ANS-Circle: Center
Arc: Center
Closed Polyline: Geometric Center
Line: Midpoint
From the Home tab, in the ... panel, select Path Array. Select the ... and press Enter.
Select an existing object to use as the ... Specify a method of ...: To evenly .... items
along the path, select the ... option. To ... objects at specific intervals, select the ...
option. Press Enter to complete the array. - ANS-Modify, objects to array, path,
distribution, distribute, Divide, distribute, Measure
If a mistake is made in a project, which is the shortcut key that undoes something within
AutoCAD - ANS-U+Enter
On which panel is the multiline text option? - ANS-Annotation
Once dimension styles are established, how can individual dimensions be manipulated?
- ANS-Through the Properties box
Shift- clicking while using the EXTEND command will cause a TRIM instead. - ANS-Yes
The Delta option for the LENGTHEN command changes the length of an object by a
specified increment by appending length to the end of the existing line. - ANS-Yes
The properties for two rectangular polylines are given below. With Polyline 1 selected,
the Match Properties (MATCHPROP) command is used, then Polyline 2 is selected.
