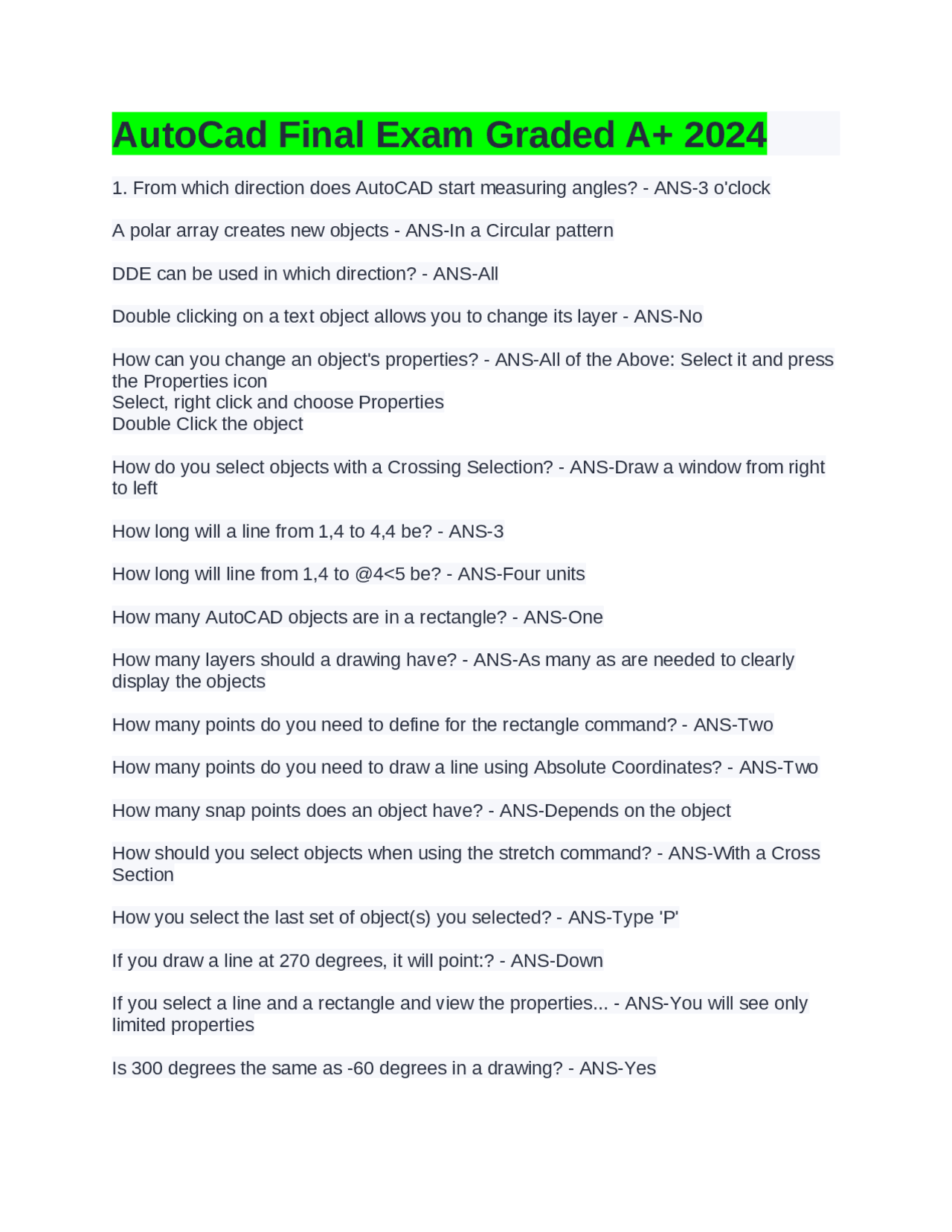

AutoCad Final Exam Graded A+ 2024
1. From which direction does AutoCAD start measuring angles? - ANS-3 o'clock
A polar array creates new objects - ANS-In a Circular pattern
DDE can be used in which direction? - ANS-All
Double clicking on a text object allows you to change its layer - ANS-No
How can you change an object's properties? - ANS-All of the Above: Select it and press
the Properties icon
Select, right click and choose Properties
Double Click the object
How do you select objects with a Crossing Selection? - ANS-Draw a window from right
to left
How long will a line from 1,4 to 4,4 be? - ANS-3
How long will line from 1,4 to @4<5 be? - ANS-Four units
How many AutoCAD objects are in a rectangle? - ANS-One
How many layers should a drawing have? - ANS-As many as are needed to clearly
display the objects
How many points do you need to define for the rectangle command? - ANS-Two
How many points do you need to draw a line using Absolute Coordinates? - ANS-Two
How many snap points does an object have? - ANS-Depends on the object
How should you select objects when using the stretch command? - ANS-With a Cross
Section
How you select the last set of object(s) you selected? - ANS-Type 'P'
If you draw a line at 270 degrees, it will point:? - ANS-Down
If you select a line and a rectangle and view the properties... - ANS-You will see only
limited properties
Is 300 degrees the same as -60 degrees in a drawing? - ANS-Yes
pf3

Partial preview of the text

Download AutoCAD Final Exam Graded A+ 2024 and more Exams Computer Applications in PDF only on Docsity!

AutoCad Final Exam Graded A+ 2024

  1. From which direction does AutoCAD start measuring angles? - ANS-3 o'clock A polar array creates new objects - ANS-In a Circular pattern DDE can be used in which direction? - ANS-All Double clicking on a text object allows you to change its layer - ANS-No How can you change an object's properties? - ANS-All of the Above: Select it and press the Properties icon Select, right click and choose Properties Double Click the object How do you select objects with a Crossing Selection? - ANS-Draw a window from right to left How long will a line from 1,4 to 4,4 be? - ANS- How long will line from 1,4 to @4<5 be? - ANS-Four units How many AutoCAD objects are in a rectangle? - ANS-One How many layers should a drawing have? - ANS-As many as are needed to clearly display the objects How many points do you need to define for the rectangle command? - ANS-Two How many points do you need to draw a line using Absolute Coordinates? - ANS-Two How many snap points does an object have? - ANS-Depends on the object How should you select objects when using the stretch command? - ANS-With a Cross Section How you select the last set of object(s) you selected? - ANS-Type 'P' If you draw a line at 270 degrees, it will point:? - ANS-Down If you select a line and a rectangle and view the properties... - ANS-You will see only limited properties Is 300 degrees the same as -60 degrees in a drawing? - ANS-Yes
