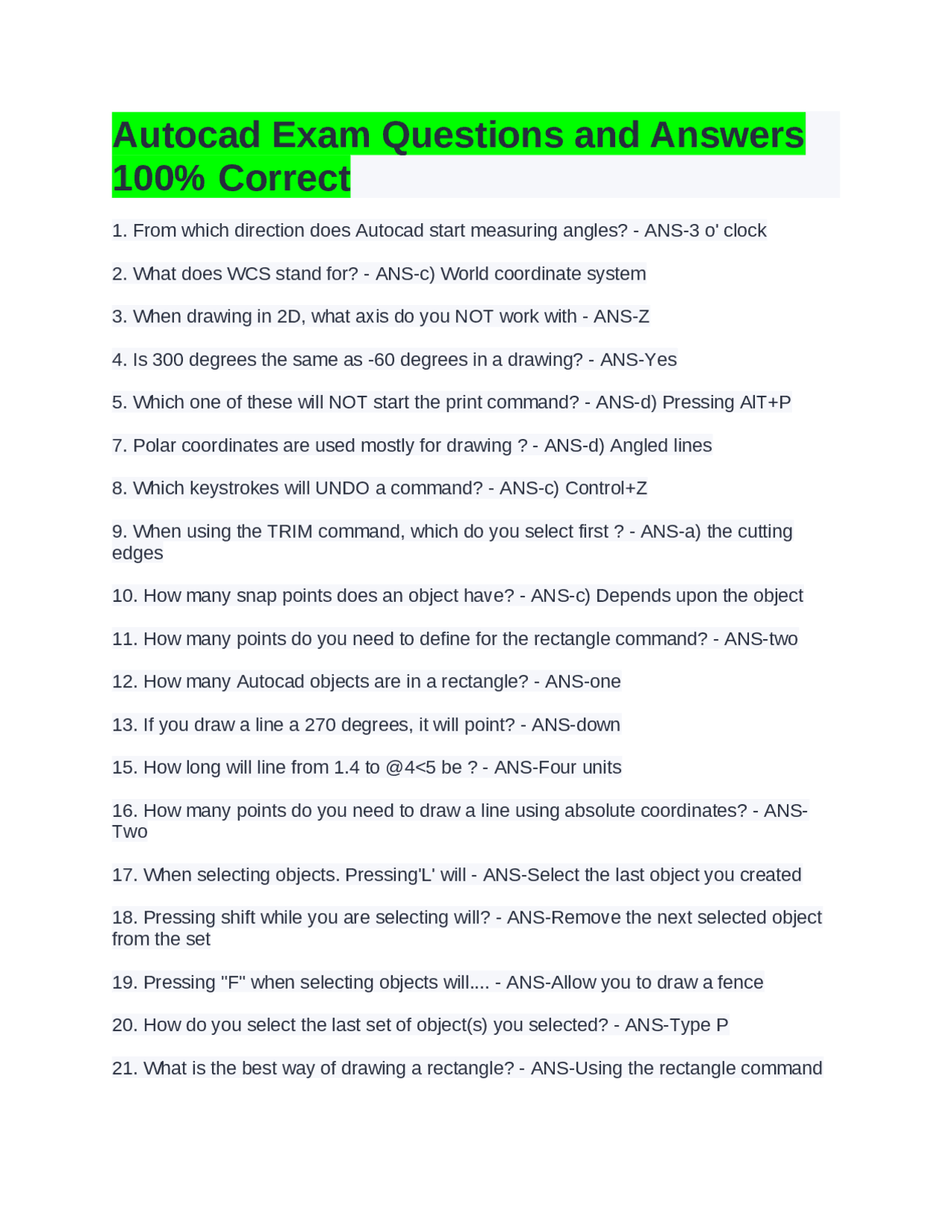

Autocad Exam Questions and Answers
100% Correct
1. From which direction does Autocad start measuring angles? - ANS-3 o' clock
2. What does WCS stand for? - ANS-c) World coordinate system
3. When drawing in 2D, what axis do you NOT work with - ANS-Z
4. Is 300 degrees the same as -60 degrees in a drawing? - ANS-Yes
5. Which one of these will NOT start the print command? - ANS-d) Pressing AlT+P
7. Polar coordinates are used mostly for drawing ? - ANS-d) Angled lines
8. Which keystrokes will UNDO a command? - ANS-c) Control+Z
9. When using the TRIM command, which do you select first ? - ANS-a) the cutting
edges
10. How many snap points does an object have? - ANS-c) Depends upon the object
11. How many points do you need to define for the rectangle command? - ANS-two
12. How many Autocad objects are in a rectangle? - ANS-one
13. If you draw a line a 270 degrees, it will point? - ANS-down
15. How long will line from 1.4 to @4<5 be ? - ANS-Four units
16. How many points do you need to draw a line using absolute coordinates? - ANS-
Two
17. When selecting objects. Pressing'L' will - ANS-Select the last object you created
18. Pressing shift while you are selecting will? - ANS-Remove the next selected object
from the set
19. Pressing "F" when selecting objects will.... - ANS-Allow you to draw a fence
20. How do you select the last set of object(s) you selected? - ANS-Type P
21. What is the best way of drawing a rectangle? - ANS-Using the rectangle command
pf3

Partial preview of the text

Download Autocad Exam Questions and Answers 100% Correct and more Exams Computer Applications in PDF only on Docsity!

Autocad Exam Questions and Answers

100% Correct

  1. From which direction does Autocad start measuring angles? - ANS-3 o' clock
  2. What does WCS stand for? - ANS-c) World coordinate system
  3. When drawing in 2D, what axis do you NOT work with - ANS-Z
  4. Is 300 degrees the same as -60 degrees in a drawing? - ANS-Yes
  5. Which one of these will NOT start the print command? - ANS-d) Pressing AlT+P
  6. Polar coordinates are used mostly for drawing? - ANS-d) Angled lines
  7. Which keystrokes will UNDO a command? - ANS-c) Control+Z
  8. When using the TRIM command, which do you select first? - ANS-a) the cutting edges
  9. How many snap points does an object have? - ANS-c) Depends upon the object
  10. How many points do you need to define for the rectangle command? - ANS-two
  11. How many Autocad objects are in a rectangle? - ANS-one
  12. If you draw a line a 270 degrees, it will point? - ANS-down
  13. How long will line from 1.4 to @4<5 be? - ANS-Four units
  14. How many points do you need to draw a line using absolute coordinates? - ANS- Two
  15. When selecting objects. Pressing'L' will - ANS-Select the last object you created
  16. Pressing shift while you are selecting will? - ANS-Remove the next selected object from the set
  17. Pressing "F" when selecting objects will.... - ANS-Allow you to draw a fence
  18. How do you select the last set of object(s) you selected? - ANS-Type P
  19. What is the best way of drawing a rectangle? - ANS-Using the rectangle command

To move something four untis to the right, what would be the 2nd point of displacement? - ANS-@4,0 or @4<

  1. How should you select objects when using the stretch command? - ANS-With a crossing window
  2. The origin of a drawing is at: - ANS-0,
  3. Objects are rotated around the - ANS-Base Point
  4. The fillet command creates - ANS-Round corners
  5. A polar array creates new objects - ANS-In a circular pattern
  6. The distances of a chamber are: - ANS-Sometimes different
  7. You should use Osnaps when you dimension - ANS-Always
  8. How many layers should a drawing have? - ANS-As many as are needed to clearly display the objects
  9. When can you change the height of your text? - ANS-When you are starting the Text command Scaling objects makes them - ANS-both bigger an smaller
  10. Which layer(s) will you most likely needed - ANS-objects, text, dimension
  11. What can be contained in a template drawing? - ANS-layers, text styles, dimension styles
  12. To invoke the Zoom command transparently, type: - ANS-'Z
  13. Which is not a valid Zoom option - ANS-Zoom next Panning allows you to - ANS-Move around the drawing at the same scale
  14. What can you type in to see the text styles dialog box? - ANS-ST
  15. What can be a problem with using True Type fonts? - ANS-(A) They can slow down the drawing (B) Other users may not have the same fonts (C) They can be tougher to format
  16. When you are defining a Text Style, should you adjust the height? - ANS-(C) Only if you really know what you're doing
