aircraft cockpit lamps, Summaries of Electrical and Electronics Engineering

University of Perpetual Help (UPH)Electrical and Electronics Engineering

aircraft cockpit lamps with description

Typology: Summaries

2022/2023

Uploaded on 02/25/2023

JohnCyrusUmali1991
JohnCyrusUmali1991 🇵🇭

5 documents

1 / 2

Toggle sidebar

This page cannot be seen from the preview

Don't miss anything!

bg1

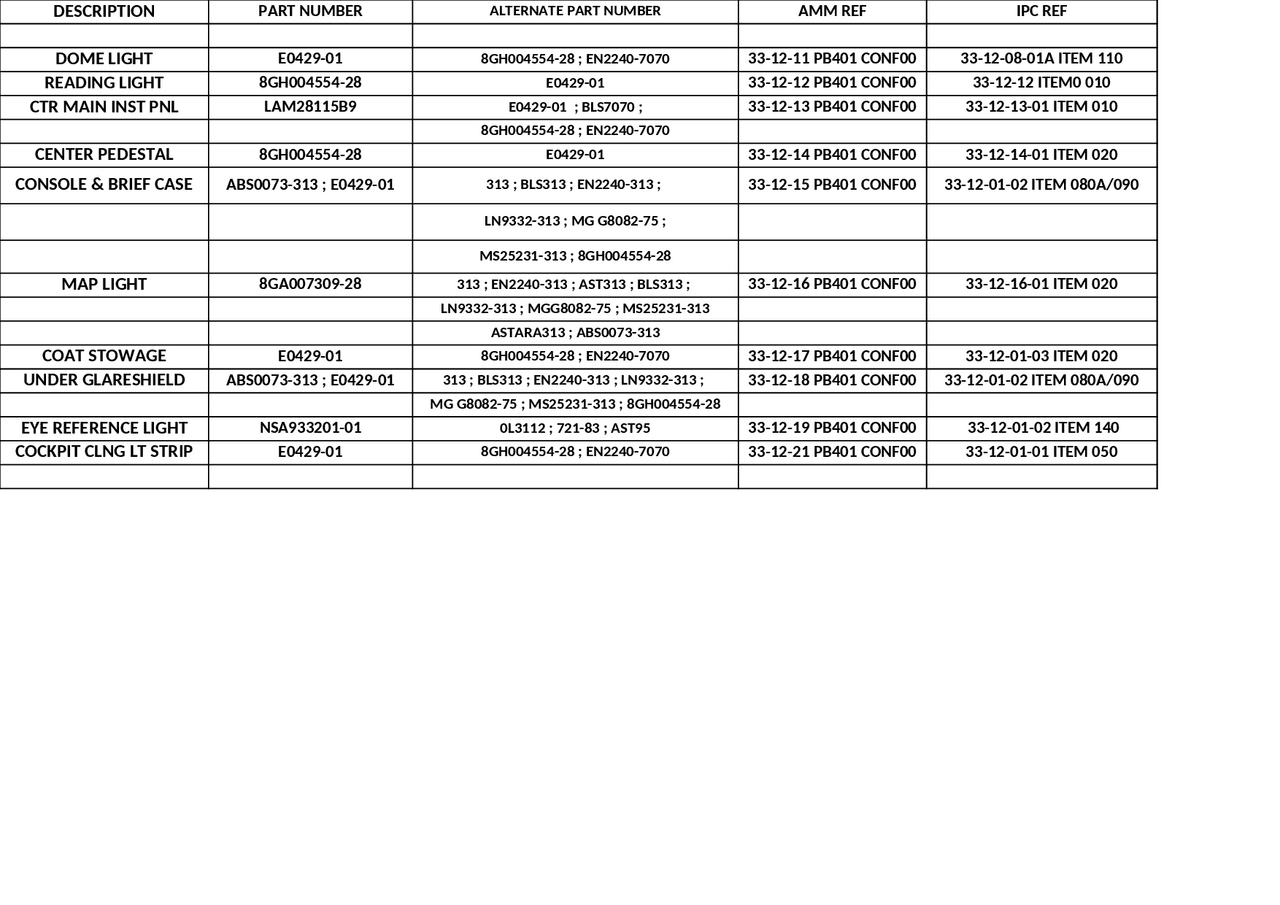

DESCRIPTION PART NUMBER ALTERNATE PART NUMBER AMM REF IPC REF
DOME LIGHT E0429-01 8GH004554-28 ; EN2240-7070 33-12-11 PB401 CONF00 33-12-08-01A ITEM 110
READING LIGHT 8GH004554-28 E0429-01 33-12-12 PB401 CONF00 33-12-12 ITEM0 010
CTR MAIN INST PNL LAM28115B9 E0429-01 ; BLS7070 ; 33-12-13 PB401 CONF00 33-12-13-01 ITEM 010
8GH004554-28 ; EN2240-7070
CENTER PEDESTAL 8GH004554-28 E0429-01 33-12-14 PB401 CONF00 33-12-14-01 ITEM 020
CONSOLE & BRIEF CASE ABS0073-313 ; E0429-01 313 ; BLS313 ; EN2240-313 ; 33-12-15 PB401 CONF00 33-12-01-02 ITEM 080A/090
LN9332-313 ; MG G8082-75 ;
MS25231-313 ; 8GH004554-28
MAP LIGHT 8GA007309-28 313 ; EN2240-313 ; AST313 ; BLS313 ; 33-12-16 PB401 CONF00 33-12-16-01 ITEM 020
LN9332-313 ; MGG8082-75 ; MS25231-313
ASTARA313 ; ABS0073-313
COAT STOWAGE E0429-01 8GH004554-28 ; EN2240-7070 33-12-17 PB401 CONF00 33-12-01-03 ITEM 020
UNDER GLARESHIELD ABS0073-313 ; E0429-01 313 ; BLS313 ; EN2240-313 ; LN9332-313 ; 33-12-18 PB401 CONF00 33-12-01-02 ITEM 080A/090
MG G8082-75 ; MS25231-313 ; 8GH004554-28
EYE REFERENCE LIGHT NSA933201-01 0L3112 ; 721-83 ; AST95 33-12-19 PB401 CONF00 33-12-01-02 ITEM 140
COCKPIT CLNG LT STRIP E0429-01 8GH004554-28 ; EN2240-7070 33-12-21 PB401 CONF00 33-12-01-01 ITEM 050
pf2

Partial preview of the text

Download aircraft cockpit lamps and more Summaries Electrical and Electronics Engineering in PDF only on Docsity!

DESCRIPTION PART NUMBER^ ALTERNATE PART NUMBER^ AMM REF^ IPC REF

 - DOME LIGHT E0429-01 8GH004554-28 ; EN2240-7070 33-12-11 PB401 CONF00 33-12-08-01A ITEM - READING LIGHT 8GH004554-28 E0429-01 33-12-12 PB401 CONF00 33-12-12 ITEM0 - CTR MAIN INST PNL LAM28115B9 E0429-01 ; BLS7070 ; 33-12-13 PB401 CONF00 33-12-13-01 ITEM - 8GH004554-28 ; EN2240- - CENTER PEDESTAL 8GH004554-28 E0429-01 33-12-14 PB401 CONF00 33-12-14-01 ITEM
  • CONSOLE & BRIEF CASE ABS0073-313 ; E0429-01 313 ; BLS313 ; EN2240-313 ; 33-12-15 PB401 CONF00 33-12-01-02 ITEM 080A/ - MS25231-313 ; 8GH004554- LN9332-313 ; MG G8082-75 ; - MAP LIGHT 8GA007309-28 313 ; EN2240-313 ; AST313 ; BLS313 ; 33-12-16 PB401 CONF00 33-12-16-01 ITEM - LN9332-313 ; MGG8082-75 ; MS25231- - ASTARA313 ; ABS0073- - COAT STOWAGE E0429-01 8GH004554-28 ; EN2240-7070 33-12-17 PB401 CONF00 33-12-01-03 ITEM - UNDER GLARESHIELD ABS0073-313 ; E0429-01 313 ; BLS313 ; EN2240-313 ; LN9332-313 ; 33-12-18 PB401 CONF00 33-12-01-02 ITEM 080A/ - MG G8082-75 ; MS25231-313 ; 8GH004554-
    • EYE REFERENCE LIGHT NSA933201-01 0L3112 ; 721-83 ; AST95 33-12-19 PB401 CONF00 33-12-01-02 ITEM
  • COCKPIT CLNG LT STRIP E0429-01 8GH004554-28 ; EN2240-7070 33-12-21 PB401 CONF00 33-12-01-01 ITEM
