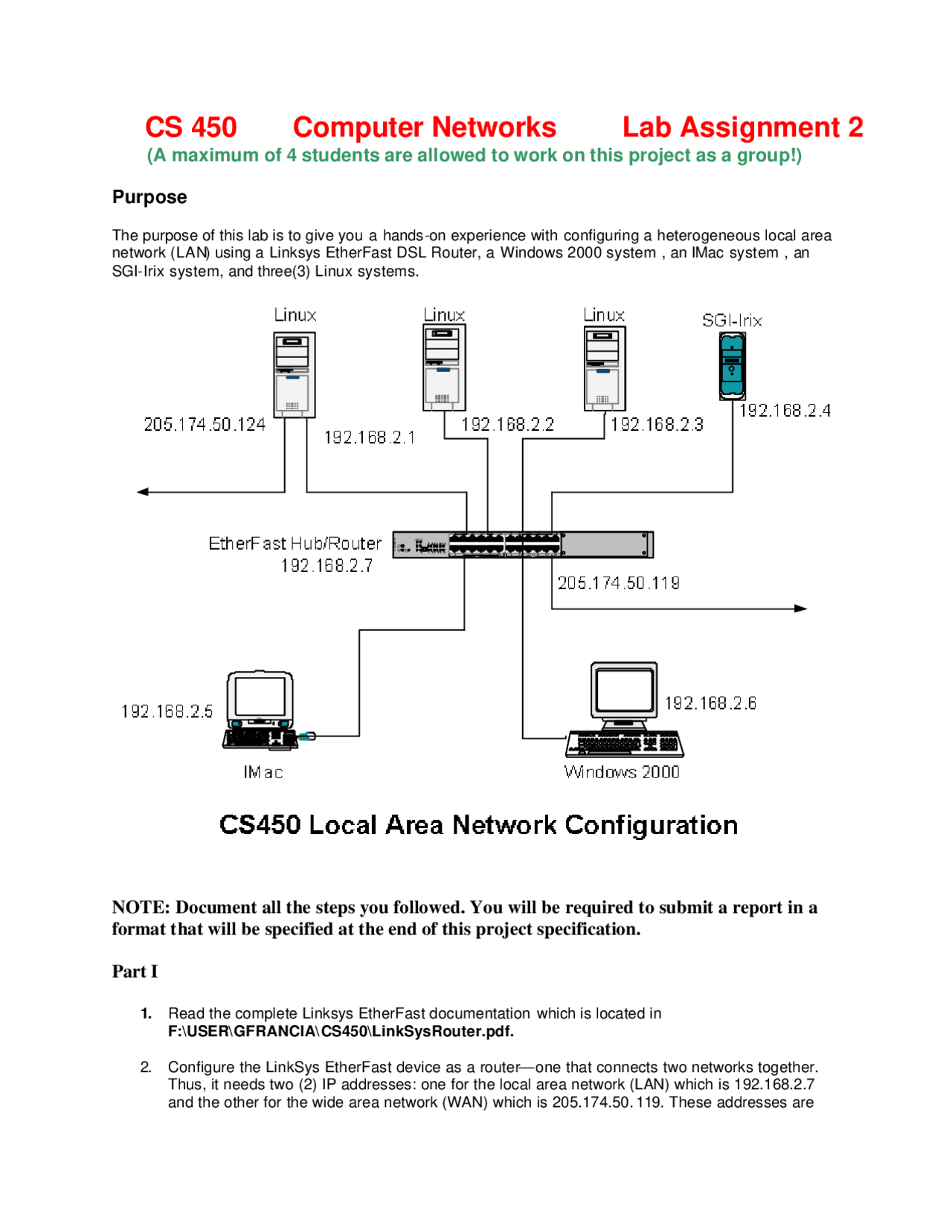

CS 450 Computer Networks Lab Assignment 2
(A maximum of 4 students are allowed to work on this project as a group!)
Purpose
The purpose of this lab is to give you a hands-on experience with configuring a heterogeneous local area
network (LAN) using a Linksys EtherFast DSL Router, a Windows 2000 system , an IMac system , an
SGI-Irix system, and three(3) Linux systems.
iMac
123 45 6
789101112
AB
12x
6x
8x
2x
9x
3x
10x
4x
11x
5x
7x
1x
Ethernet
A
12x
6x
8x
2x
9x
3x
10x
4x
11x
5x
7x
1x
C
NOTE: Document all the steps you followed. You will be required to submit a report in a
format that will be specified at the end of this project specification.
Part I
1. Read the complete Linksys EtherFast documentation which is located in
F:\USER\GFRANCIA\CS450\LinkSysRouter.pdf.
2. Configure the LinkSys EtherFast device as a router—one that connects two networks together.
Thus, it needs two (2) IP addresses: one for the local area network (LAN) which is 192.168.2.7
and the other for the wide area network (WAN) which is 205.174.50.119. These addresses are
pf2

Partial preview of the text

Download Lab Assignment 2: Configuring a Heterogeneous LAN Network and more Study notes Computer Systems Networking and Telecommunications in PDF only on Docsity!

CS 450 Computer Networks Lab Assignment 2

(A maximum of 4 students are allowed to work on this project as a group!)

Purpose

The purpose of this lab is to give you a hands-on experience with configuring a heterogeneous local area network (LAN) using a Linksys EtherFast DSL Router, a Windows 2000 system , an IMac system , an SGI-Irix system, and three(3) Linux systems.

i Mac

A 1 2 3 4 5 67 8 9 1 01 11 2 B

1 2x 6 x

8 x 2 x

9 x 3 x

1 0x 4 x

1 1 x 5 x

7 x Eth e 1 x rn et A

1 2x 6 x

8 x 2 x

9 x 3 x

1 0 x 4 x

1 1 x 5 x

7 x 1 x

C

NOTE: Document all the steps you followed. You will be required to submit a report in a

format that will be specified at the end of this project specification.

Part I

1. Read the complete Linksys EtherFast documentation which is located in F:\USER\GFRANCIA\ CS450\LinkSysRouter.pdf.

  1. Configure the LinkSys EtherFast device as a router—one that connects two networks together. Thus, it needs two (2) IP addresses: one for the local area network (LAN) which is 192.168.2. and the other for the wide area network (WAN) which is 205.174.50. 119. These addresses are

static IP addresses. The instructions on how to do this are found in chapters 3 and 5 of the Etherfast User’s Manual.

Here are some pertinent information that you will need to configure the router:

HostName: LinkSysRouter DomainName : jsu.edu LAN IP Address : 192.168.2.7 LAN Subnet Mask : 255.255.255. WAN IP Address : 205.174.50.119 WAN Subnet Mask : 255.255.255. Default Gateway Address : 205.174.50.1 DNS Server : 199.88.30.

Part II

  1. Connect the router to one of the 3COM switch. Diagnose and correct the problems if there are any.

Part III

All the documentations for configuring each of the systems below can be found in the course website: http://cs.jsu.edu/mcis/faculty/gfrancia/cs

  1. Configure the Windows 2000 system’s network interface card. Connect the system to the router. Test the connection.
  2. Configure the IMac system’s network interface card. Connect the system to the router. Test the connection.
  3. Configure the Linux systems’ network interface cards. Connect the systems to the router. Test the connections.

Part IV

Before doing each of the following steps that involve network security,

study/research the topic using the Internet or the library. Test your configuration after

each step.

  1. Enable IP Filtering on the router.
  2. Enable MAC address Filtering on the router.
  3. Enable Block WAN request.
  4. Enable multicasting. Use the multicasting program that you wrote in one of the earlier programming projects to test the setup.
  5. Establish VPN sessions by enabling Point to Point Protocol (PPTP) Pass Through.
  6. Enable Remote Management.
  7. Specify the Maximum Transmission Unit (MTU).
  8. Enable Quality of Service (QOS) for various ports.

Part V

15. Reset the router to its factory default configuration.

  1. Reset the IMac, the Windows 2000, and the Linux systems to their original network configurations.

What to turn in

Write your report using MS-Word. This report should contain all the details of your work

and experiences in the laboratory. Make sure you point out all the difficulties and

challenges that you ha ve encountered. BE SURE TO INCLUDE ALL THE NAMES OF

THOSE WHO ARE INVOLVED IN THE REPORT.
